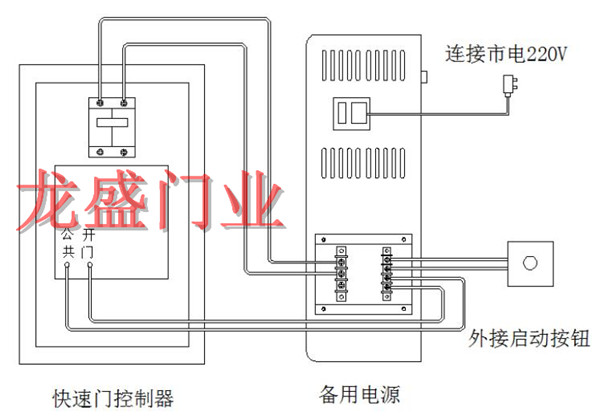

Connection Diagram of Reserve Power Supply for "Jinzhou Express Gate" Accumulated Gate

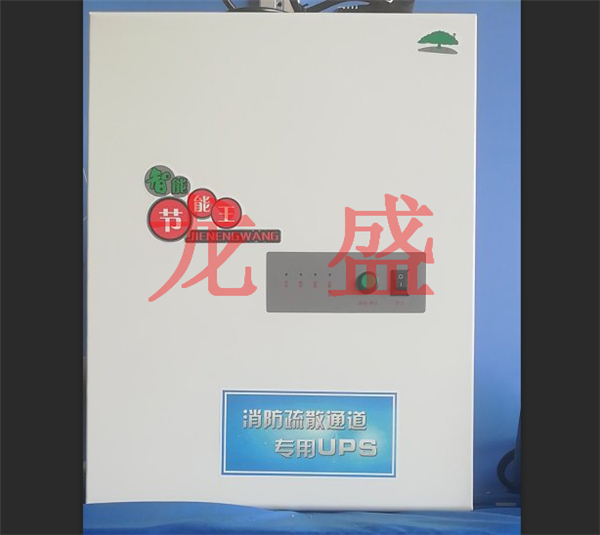

为了避免用户在停电的状态下无法迅速的打开和关闭快速门，北京龙盛门业的每一个工程都标配专用储备电源一套。



In order to avoid the users can not quickly open and close the fast door in the state of power outage, each project of Beijing Longshengmen Industry is equipped with a set of special reserve power supply.



这样，一旦断电，用户可通过专用的备用电源，运行快速门15个回合。



In this way, once the power is cut off, the user can run 15 rounds of the fast door through a dedicated backup power supply.



避免出现火灾等危险情况无法迅速关门阻隔或开门逃生。



Avoid dangerous situations such as fire, and can not quickly close the door to block or open the door to escape.



「锦州快速门」堆积门储备电源接线图



Connection Diagram of Reserve Power Supply for "Jinzhou Express Gate" Accumulated Gate



对于该储备电源的一些相关参数，我们之前的文章已经有过介绍了



Some parameters of the reserve power supply have been introduced in our previous articles.



今天的文章，我们将要为您分享测是它的使用和接线方法。



In today's article, we will share with you the usage and wiring methods of measurement.

安装操作说明




Installation instructions



1、 请按照推荐安装方式接线安装，进风口和出风口最小 10 厘米内不能有障碍物。



1. Please connect and install according to the recommended installation mode. No obstruction can be found in the minimum 10 cm of the air inlet and outlet.



2、 打开面板开关，按启动按钮或外接启动按钮，后备电源进入逆变工作模式。



2. Open the panel switch, press the start button or the external start button, and the backup power supply enters the inverting mode.



3、 市电输入接通市电，后备电源进入市电模式，停电时后备电源自动转换逆变模式。



3. The municipal power input is connected to the municipal power supply, the backup power supply enters the municipal power supply mode, and the backup power supply automatically converts to the inverted mode when the power failure occurs.



4、 停电后开门触点闭合，如果开门触点连接快速门开门接点门将打开，开门后空载 20 秒关机，如果还要继续使用备用电源按启动按钮或外接启动按钮。



4. The open contact closes after power failure. If the open contact connects with the fast door, the open contact door will open. After opening the door, shut down without load for 20 seconds. If you want to continue using the standby power supply, press the start button or the external start button.

注意：




Be careful:



*请勿自选拆开机盖，内有高压危险!如有问题请与我司技术部联系。



* Do not open the cover of the machine optionally. There is high pressure danger in it. If you have any questions, please contact our technical department.



*机器使用时需保持通风良好。



* Maintain good ventilation when using the machine.
