「沈阳快速门」硬质快速门防砸防撞装置

「沈阳快速门」硬质快速门防砸防撞装置


"Ningbo Fast Gate" Hard Fast Gate Anti-smash and Anti-collision Device

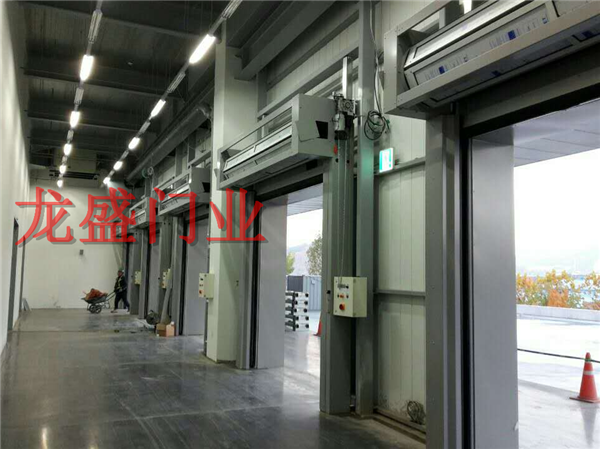

涡轮硬质快速门经济硬质快速门具备保温，隔音，隔尘等多项功能。广泛用于地下泊车场，工业车间，冷库，医药车间，电子，食品加工，纺织，汽车装配，机密机械，物流等行业。


Turbine Hard Fast Door Economic Hard Fast Door has many functions such as thermal insulation, sound insulation, dust insulation and so on. Widely used in underground parking yards, industrial workshops, refrigerators, pharmaceutical workshops, electronics, food processing, textile, automobile assembly, confidential machinery, logistics and other industries.

标配及外加配置：铝合金快速门接纳按钮手控，雷达控制，地磁控制，蓝牙射频，无线遥控，拉绳开关，远程中央控制等多种控制方式，充分满足用户要求。


Standard and additional configuration: Aluminum alloy fast door acceptance button manual control, radar control, geomagnetic control, Bluetooth radio frequency, wireless remote control, rope switch, remote central control and other control methods, fully meet user requirements.


铝合金涡轮模式及优点：因为接纳螺旋导轨，HFG系列快速门运行速度快，无噪音，且无磨损。


Aluminum alloy turbine mode and advantages: because of the acceptance of screw guides, HFG series fast doors run fast, noise-free, and wear-free.


双螺旋导轨是标准设计规格，同时也是开启和关闭速度非常快的解决方案。


The double helix guideway is a standard design specification, and it is also a solution with very fast opening and closing speed.


如果上房空间不足，可以采取涡轮，椭圆，平提，直提等不同的提升方式。


If the room space is insufficient, different lifting modes can be adopted, such as turbine, ellipse, flat lifting and direct lifting.

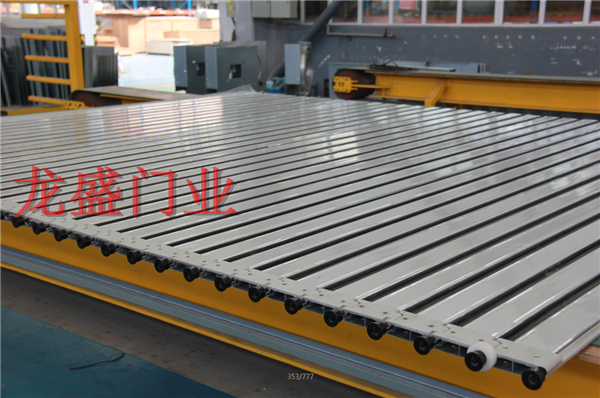

铝合金门帘厚度40mm，外观经由阳极氧化加有机着色处理，抗拉强度超过230B/MPA符合GB/T5237.1-5-2000标准颜色为巴士德灰，还有铝合金沙白、中国红两种可选颜色；


The aluminium alloy door curtain is 1-200 mm thick and its appearance is treated by anodic oxidation and organic coloring. The tensile strength of the curtain exceeds 230B/MPA, which meets the GB/T5237.1-5-2000 standard. The color of the curtain is Bastian grey. There are also two optional colors of aluminum alloy sand white and Chinese red.


通过软连接胶条连接铝合门帘片站后，软连接部份折叠寿命达百万次以上；


The folding life of the flexible connection part is more than one million times after the flexible connection rubber strip is connected to the aluminium door curtain station.


角链承重方式设计使门帘接合处不受力，门帘片不变型，长时间后还可维持平整性；


The angle chain load-bearing design makes the joint of the door curtain not force, the door curtain sheet does not change shape, and can maintain smoothness after a long time.


门体运行时是通过聚安脂材料的导向轮在铝合金轨道内滑动，非常高速运行时也不会发生任何磨擦和燥音。


When the door body runs, it slides in the track of aluminium alloy through the guide wheel of polyurethane material, and there will be no friction and dry noise when it runs at very high speed.


「沈阳快速门」硬质快速门防砸防撞装置


"Ningbo Fast Gate" Hard Fast Gate Anti-smash and Anti-collision Device

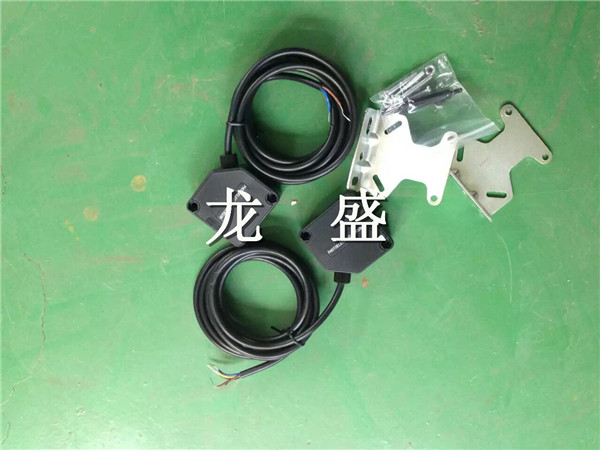

红外线安全保护电眼：门框两侧设有对射电眼，快速门下方有物体，使门维持开启状态；当门体下降时下方有物体通过，门体会开启到非常开位，待下方无障碍物时再延时下降。


Infrared Safety Protection Eye: There are radio eyes on both sides of the door frame, and there are objects under the fast door to keep the door open; when the door body drops, there are objects passing below, the door body will open to a very open position, and then delay the descent when there are no obstacles below.

底部安全保护边：当门体在下降时，因为物体处在红外线安全保护的盲区时，门体压在下方障碍物时，门体讯速反弹在非常开门，有效的保户下方物体或行人避免事故。


Bottom Safety Protection Edge: When the door body is falling, because the object is in the blind area of infrared safety protection, when the door body is pressed against the obstacle below, the speed of the door body rebounds in a very open door, effectively protecting objects or pedestrians below the door to avoid accidents.


光幕保护系统：特有的非常有效的一种安全保护方式，在重直地方的方向安装一给光栅墙，它通常是由18组光头构成，接纳485通讯协议，跟据门帘体的时实高候来计算门帘位置并给于过往行人或物体保护的一种有效措施。


Light curtain protection system: a unique and effective way of security protection, which installs a grating wall in the direction of the straight place. It is usually composed of 18 groups of light heads, accepts 485 communication protocol, calculates the position of the curtain according to the real time of the curtain body, and provides an effective measure for the protection of passers-by or objects.
